Item specifics
  • Demo Board Type: ARM
  • STM32 microcontroller: with LQFP64 package
  • On-board: ST-LINK/V2-1 debugger/programmer with SWD connector
  • selection-mode: switch to use the kit as a standalone ST-LINK/V2-1
  • USB VBUS or external source: 3.3 V, 5 V, 7 - 12 V
  • Three LEDs: USB communication (LD1), user LED (LD2), power LED (LD3)
  • Two push buttons: USER and RESET
  • USB re-enumeration capability: three different interfaces supported on USB
  • mbed-enabled: //mbed.org
  • Place Of Origin: China
Product Description

hello,
Your order is under $8, we unified send China Post Ordinary Small Packet Plus.
There is no tracking information, usually arrived in your country is 40-70 days, we don\\\'t accept the dispute,
If you don\\\'t wait, it is recommended that the purchase order is more than $8,


Your order is more than $8, we unified make arrangements for your China Post Registered Air Mail,
Have a tracking number query information, general arrived in your country is 25 to 50 days,
Please after receipt of the goods, the products in a 5 star evaluation, thank you for your understanding,

STM32 Board NUCLEO-F446RE, STM32 Nucleo development board with STM32F446RET6 MCU, supports Arduino

NUCLEO-F446RE, STM32 Nucleo development board with STM32F446RET6 MCU, supports Arduino

Description

The STM32 Nucleo board provides an affordable and flexible way for users to try out new ideas and build prototypes with any STM32 microcontroller line, choosing from the various combinations of performance, power consumption and features. The Arduino connectivity support and ST Morpho headers make it easy to expand the functionality of the STM32 Nucleo open development platform with a wide choice of specialized shields.

The STM32 Nucleo board does not require any separate probe as it integrates the ST-LINK/V2-1 debugger and programmer.

The STM32 Nucleo board comes with the STM32 comprehensive software HAL library together with various packaged software examples, as well as direct access to mbed online resources.

Key Features

  • STM32 microcontroller with LQFP64 package
  • Two types of extension resources
    • Arduino Uno Revision 3 connectivity
    • STMicroelectronics Morpho extension pin headers for full access to all STM32 I/Os
  • mbed-enabled (//mbed.org)
  • On-board ST-LINK/V2-1 debugger/programmer with SWD connector
    • selection-mode switch to use the kit as a standalone ST-LINK/V2-1
  • Flexible board power supply
    • USB VBUS or external source(3.3 V, 5 V, 7 - 12 V)
    • Power management access point
  • Three LEDs
    • USB communication (LD1), user LED (LD2), power LED (LD3)
  • Two push buttons: USER and RESET
  • USB re-enumeration capability: three different interfaces supported on USB
    • Virtual Com port
    • Mass storage
    • Debug port
  • Supported by wide choice of Integrated Development Environments (IDEs) including IAR, Keil, GCC-based IDEs

Photos

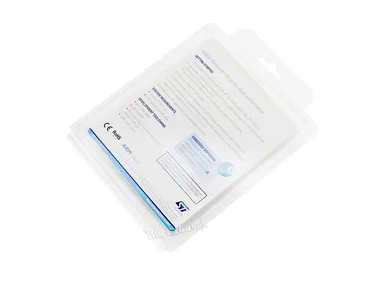

NUCLEO-F446RE Packaging Back View

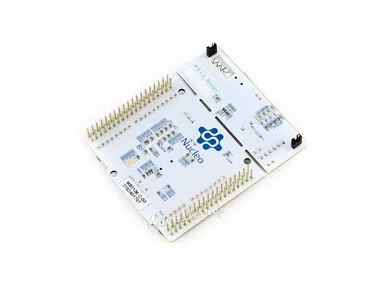

NUCLEO-F446RE Development Board

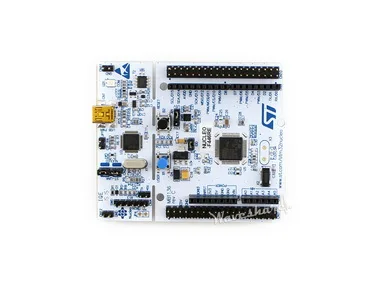

NUCLEO-F446RE Development Board

NUCLEO-F446RE Development Board

What\\\\\\\'s Onboard


Dimensions


Design Support

For Technical Documentation, Software & Development Tools, Hardware Resources, view the NUCLEO-F446RE official page on st.com to get more information: st.com/web/catalog/tools/FM116/SC959/SS1532/LN1847/PF262063


Package Contains

  1. NUCLEO-F446RE × 1
Packaging Details
  • Unit Type: piece
  • Package Weight: 0.18kg (0.40lb.)
  • Package Size: 20cm x 18cm x 10cm (7.87in x 7.09in x 3.94in)
